Yeheng Zong*

Yizhou Chen*

Alexander Bowler

Chia-Tung Yang

Ram Vasudevan

* Equal contribution. All authors are affiliated with the Department of Robotics and the Department of Mechanical Engineering of the University of Michigan, Ann Arbor.

Arxiv

Code

Abstract

Structured 3D representations such as keypoints and meshes offer compact, expressive descriptions of deformable objects, jointly capturing geometric and topological information useful for downstream tasks such as dynamics modeling and motion planning. However, robustly extracting such representations remains challenging, as current perception methods struggle to handle complex deformations. Moreover, large-scale 3D data collection remains a bottleneck: existing approaches either require prohibitive data collection efforts, such as labor-intensive annotation or expensive motion capture setups, or rely on simplifying assumptions that break down in unstructured environments. As a result, large-scale 3D datasets and benchmarks for deformable objects remain scarce. To address these challenges, this paper presents an affordable and autonomous framework for collecting 3D datasets of deformable objects using only RGB-D cameras. The proposed method identifies 3D keypoints and robustly tracks their trajectories, incorporating motion consistency constraints to produce temporally smooth and geometrically coherent data. TrackDeform3D is evaluated against several state-of-the-art tracking methods across diverse object categories and demonstrates consistent improvements in both geometric and tracking accuracy. Using this framework, this paper presents a high-quality, large-scale dataset consisting of 6 deformable objects, totaling 110 minutes of trajectory data.

TrackDeform3D title figure

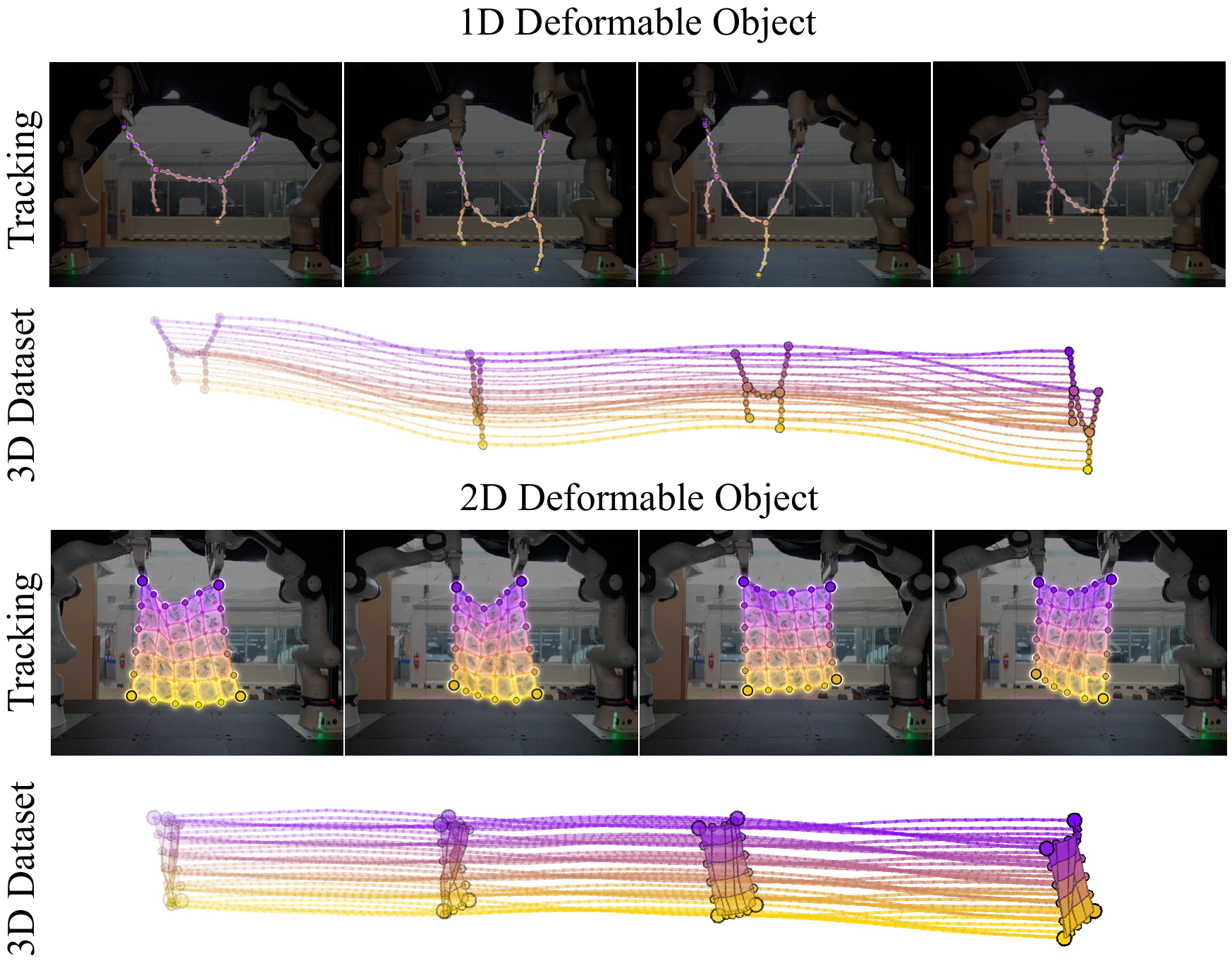

Given only the foreground point cloud of a deformable object from an RGB-D camera, TrackDeform3D recovers its keypoints and topology (graph edges) on the first frame, then tracks them consistently across the recording — with no markers and no motion-capture rig.

Method

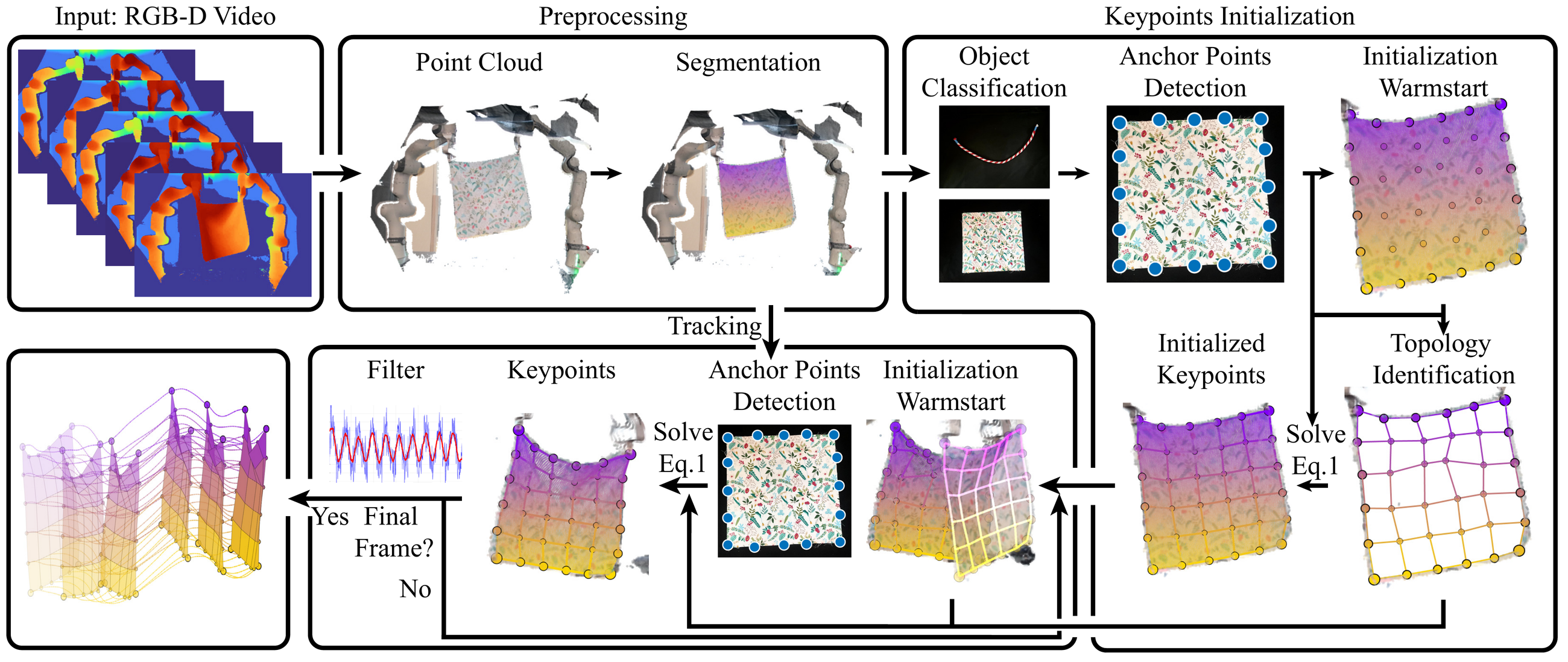

Given an RGB-D video, TrackDeform3D first lifts depth images to point clouds and segments the deformable object via point cloud differencing (§III-C). From the first segmented frame, the object type is classified and 3D keypoints are initialized by detecting anchor points, generating warm-start positions, inferring object topology, and solving a constrained geometric optimization (§III-B, §III-D). During tracking, anchor points are re-detected at each frame and the same optimization is solved recursively, warm-started from the previous solution. A temporal moving-average filter is applied to suppress high-frequency jitter, producing smooth and temporally consistent 3D keypoint trajectories (§III-E).

TrackDeform3D method overview

Dataset

Using this framework, we collect a high-quality, large-scale dataset of 6 deformable objects totaling 110 minutes of trajectory data, captured with only RGB-D cameras — no markers and no motion-capture rig.

  • Raw data: available on Google Drive (RGB-D frames, foreground masks, and per-frame arm poses).
  • Processed dataset: coming soon — link will be posted here.

For data format and usage, see the code repository.

Demo Video

Citation

This project was developed in the Robotics and Optimization for Analysis of Human Motion (ROAHM) Lab at the University of Michigan - Ann Arbor.

@misc{zong2026trackdeform3d,
      title={TrackDeform3D: Markerless and Autonomous 3D Keypoint Tracking and Dataset Collection for Deformable Objects},
      author={Yeheng Zong and Yizhou Chen and Alexander Bowler and Chia-Tung Yang and Ram Vasudevan},
      year={2026},
      eprint={2603.17068},
      archivePrefix={arXiv},
      primaryClass={cs.CV}
}
